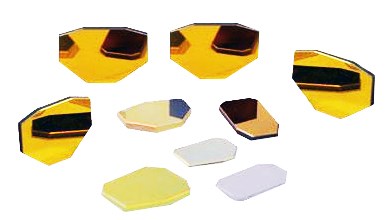

Scanning mirrors are light weight rectangular mirrors used for high speed two-axis laser scanning systems. The dimen- sions for each mirror are calculated accordingly with the laser beam size. The mirror is designed with high reflectivity of 99.5% or above. The scanning mirror is generally mounted onto a galvanometer for scanning purposes. For two axis scan mirrors, commonly the Y mirror has a bigger size compared to the X mirror. This is due to the fact that the X mirror is used to scan the Y mirror rather than the object directly.

Need a custom spec?

Send us your drawings or requirements and our engineering team will provide a tailored quote.

Product Description

Part No.Dimension L*W*T (mm)SubstrateBeam SizeX/Y
SCM-8.4x11.5x1.058.4x11.5x1.05Si/BK7/FS8.0X1
SCM-10.6x25.4x1.710.6x25.4x1.7Si/BK7/FS8.0X2
SCM-10.1x15.1x1.0510.1x15.1x1.05Si/BK7/FS8.0Y1
SCM-12.6x15x1.712.6x15.0x1.7Si/BK7/FS8.0Y2
SCM-13.7x20.3x1.513.7x20.3x1.5Si/BK7/FS10.0X3
SCM-14.7x19.4x1.714.7x19.4x1.7Si/BK7/FS10.0X5
SCM-16x21x216.0x21.0x2.0Si/BK7/FS10.0X7
SCM-16.4x28x1.716.4x28.0x1.7Si/BK7/FS10.0Y5
SCM-15.7x20.2x2.515.7x20.2x2.5Si/BK7/FS12.0X6
SCM-17.2x22.5x1.217.2x22.5x1.2Si/BK7/FS12.0X8
SCM-17.7x24.4x217.7x24.4x2.0Si/BK7/FS12.0Y4
SCM-17.7x31.5x2.517.7x31.5x2.5Si/BK7/FS12.0Y6
SCM-18.3x24.6x3.218.3x24.6x3.2Si/BK7/FS12.0X9
SCM-18.9x30.5x2.418.9x30.5x2.4Si/BK7/FS12.0Y8
SCM-19x29x219.0x29.0x2.0Si/BK7/FS12.0X10
SCM-19x32x219.0x32.0x2.0Si/BK7/FS12.0Y7
SCM-20x25x220.0x25.0x2.0Si/BK7/FS12.0X11/Y14
SCM-21.3x38.9x3.221.3x38.9x3.2Si/BK7/FS12.0Y9
SCM-21x30x221.0x30.0x2.0Si/BK7/FS15.0Y18
SCM-22.1x28.8x3.222.1x28.8x3.2Si/BK7/FS15.0X12
SCM-23x34x223.0x34.0x2.0Si/BK7/FS15.0Y10
SCM-23x30x223.0x30.0x2.0Si/BK7/FS15.0Y11
SCM-24x37x424.0x37.0x4.0Si/BK7/FS15.0X13
SCM-24.8x39.4x3.224.8x39.4x3.2Si/BK7/FS15.0Y12
SCM-25x35x225.0x35.0x2.0Si/BK7/FS15.0X15/X16/X17
SCM-25x30x225.0x30.0x2.0Si/BK7/FS20.0X14
SCM-27x32x227.0x32.0x2.0Si/BK7/FS20.0X18
SCM-30x42x430.0x42.0x4.0Si/BK7/FS20.0Y13
SCM-30x35x230.0x35.0x2.0Si/BK7/FS20.0Y15
SCM-32x39x232.0x39.0x2.0Si/BK7/FS20.0Y17
SCM-24x37x2.524.0x37.0x2.5Si/BK725.0X24
SCM-31x49x2.531.0x49.0x2.5Si/BK725.0Y24
SCM-35x45x235.0x45.0x2.0Si/BK7/FS25.0Y16/X20
SCM-34x55x434.0x55.0x4.0Si/BK7/FS25.0X19
SCM-40x64x540.0x64.0x5.0Si/BK7/FS30.0X22
SCM-40.1x54.9x440.1x54.9x4.0Si/BK7/FS30.0X21
SCM-42x65x242.0x65.0x2.0Si/BK7/FS30.0Y20
SCM-43x63x443.0x63.0x4.0Si/BK7/FS30.0Y19
SCM-45x70x445.0x70.0x(1.5-4)Si/BK7/FS30.0X23
SCM-46.7x70.1x446.7x70.1x4.0Si/BK7/FS30.0Y21
SCM-47x76x547.0x76.0x5.0Si/BK7/FS30.0Y22
SCM-60x80x460.0x80.0x(1.5-4)Si/BK7/FS40.0Y23
