Fiber Laser Optics/Parts
Fiber Laser Beam Combiner
This series of Beam Combiners is made by BK7 (H-K9L) or Fused Silica. It merges two beams into one, whether ultra- violet, visible, or near infrared; it allows users to mix invisible and visible light with an easy means of alignment.
- Diameter Tolerance
- +0/-0.13mm
- Thickness
- ±0.25mm
- Surface Flatness
- λ/4 per 1’’ Dia@632.8nm
- Surface Quality
- 40-20 S-D
- AOI
- 45°
Applications
Need a custom spec?
Send us your drawings or requirements and our engineering team will provide a tailored quote.
Product Description
Fiber Laser Beam Combiner
Eternal Optics manufactures precision Fiber Laser Beam Combiners designed for advanced fiber laser beam delivery systems, optical integration, and multi-laser applications. Our beam combining optics enable the efficient combination of multiple laser beams or the alignment of different wavelengths into a single optical path, improving system flexibility and overall laser performance.
Designed for common fiber laser wavelengths including 1030 nm, 1064 nm, and 1070 nm, our Fiber Laser Beam Combiners feature high-transmission coatings, excellent wavelength separation performance, low optical loss, and high laser damage resistance. These optical components are engineered for reliable operation in industrial laser systems requiring accurate beam alignment and stable optical coupling.
Our product range includes:
- Fiber Laser Beam Combiners
- Dichroic Beam Combiners
- Laser Beam Combining Mirrors
- Wavelength Combining Optics
- Fiber Laser Alignment Optics
- Custom Beam Combining Components
Using advanced optical coating technology, Eternal Optics provides beam combiners with optimized AR (Anti-Reflective) and HR (High Reflective) coatings for specific wavelength combinations. Custom designs are available for applications requiring different laser wavelengths, beam diameters, angles of incidence, and mechanical configurations.
Eternal Optics offers Custom Fiber Laser Beam Combiners according to customer requirements, including:
- Operating Wavelengths
- Transmission and Reflection Specifications
- Optical Material
- Beam Diameter
- Surface Quality
- Coating Design
- Mounting Dimensions
- OEM Optical Integration
Our Fiber Laser Beam Combining Optics are widely used in:
- Fiber Laser Processing Systems
- Laser Marking Equipment
- Laser Welding Systems
- Laser Cutting Applications
- Beam Delivery Modules
- Laser Alignment Systems
- Scientific Research Equipment
- OEM Laser Systems
With advanced coating capabilities, precision optical manufacturing, and strict quality control, Eternal Optics is a professional China manufacturer and global supplier of Fiber Laser Beam Combiners, 1064nm Laser Beam Combining Optics, and Custom Fiber Laser Optical Components for laser equipment manufacturers, system integrators, and photonics companies worldwide.

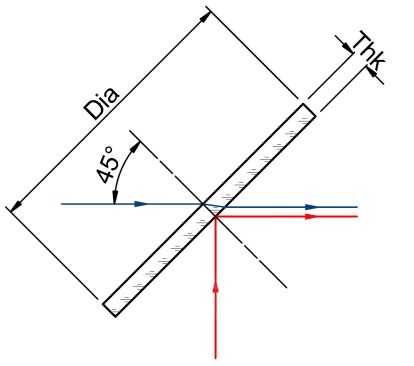

| Part No. | Dia (mm) | Thk (mm) | Material | Wavelength |
|---|---|---|---|---|
| BCBK-0.5-2 | 12.7 | 2.0 | BK7 | 1064nmT/650nmR |
| BCBK-0.75-3 | 19.1 | 3.0 | BK7 | 1064nmT/650nmR |
| BCBK-1-3 | 25.4 | 3.0 | BK7 | 1064nmT/650nmR |
| BCBK-1-3.4 | 25.4 | 3.4 | BK7 | 1064nmT/650nmR |
| BCBK-1.1-3 | 27.9 | 3.0 | BK7 | 1064nmT/650nmR |
| BCBK-2-5 | 50.8 | 5.0 | BK7 | 1064nmT/650nmR |
| BCBK-1-3.5-1064R | 25.4 | 3.5 | BK7 | 650nmT/1064nmR |
| BCBK-1-7-1064R | 25.4 | 7.0 | BK7 | 650nmT/1064nmR |
| BCBK-2-6.35-1064R | 50.8 | 6.4 | BK7 | 650nmT/1064nmR |
