CO₂ Laser Triplet F-Theta Scan Lens
Applications
Need a custom spec?
Send us your drawings or requirements and our engineering team will provide a tailored quote.
Product Description
CO₂ Laser Triplet F-Theta Scan Lens
Eternal Optics manufactures advanced CO₂ Laser Triplet F-Theta Scan Lenses designed for high-precision 10.6 μm CO₂ laser marking, engraving, cutting, and industrial laser processing systems. Featuring a multi-element triplet optical design, these scan lenses provide superior aberration correction, excellent field uniformity, and enhanced beam focusing performance for demanding laser applications.
Our 10.6µm Triplet F-Theta Scan Lenses are optimized for CO₂ laser systems and manufactured using high-quality infrared optical materials such as ZnSe (Zinc Selenide). The advanced multi-element structure effectively reduces optical distortion, improves spot quality across the entire scanning field, and ensures consistent laser processing results.
Compared with standard Singlet and Doublet F-Theta lenses, CO₂ Triplet F-Theta Scan Lenses offer improved optical correction and higher precision, making them suitable for applications requiring large scan areas, fine details, and excellent processing repeatability.
Product features include:
- Optimized for 10.6 μm CO₂ Lasers
- Triplet Multi-Element Optical Design
- Superior Aberration Correction
- Low Field Distortion
- Excellent Spot Uniformity
- High Transmission ZnSe Optics
- High Laser Damage Resistance
- Compatible with Galvanometer Scanner Systems
Eternal Optics provides both standard and Custom CO₂ Laser Triplet F-Theta Scan Lenses according to customer requirements, including:
- Scan Field Size
- Focal Length
- Working Distance
- Laser Power Range
- Optical Material Selection
- AR Coating Specification
- Scanner Interface
- Mechanical Housing Design
- OEM Optical Design
Our CO₂ Triplet F-Theta Scan Optics are widely used in:
- Precision CO₂ Laser Marking Systems
- High-Accuracy Laser Engraving Equipment
- Industrial Laser Cutting Machines
- Large Format Laser Processing
- Textile and Flexible Material Cutting
- Precision Manufacturing Systems
- Scientific Research Equipment
- OEM CO₂ Laser Platforms
With advanced infrared optical design, precision manufacturing capabilities, and coating expertise, Eternal Optics is a professional China manufacturer and global supplier of CO₂ Laser Triplet F-Theta Scan Lenses, 10.6µm ZnSe Laser Scan Optics, and Custom CO₂ Laser Optical Components for laser equipment manufacturers, system integrators, and industrial users worldwide.

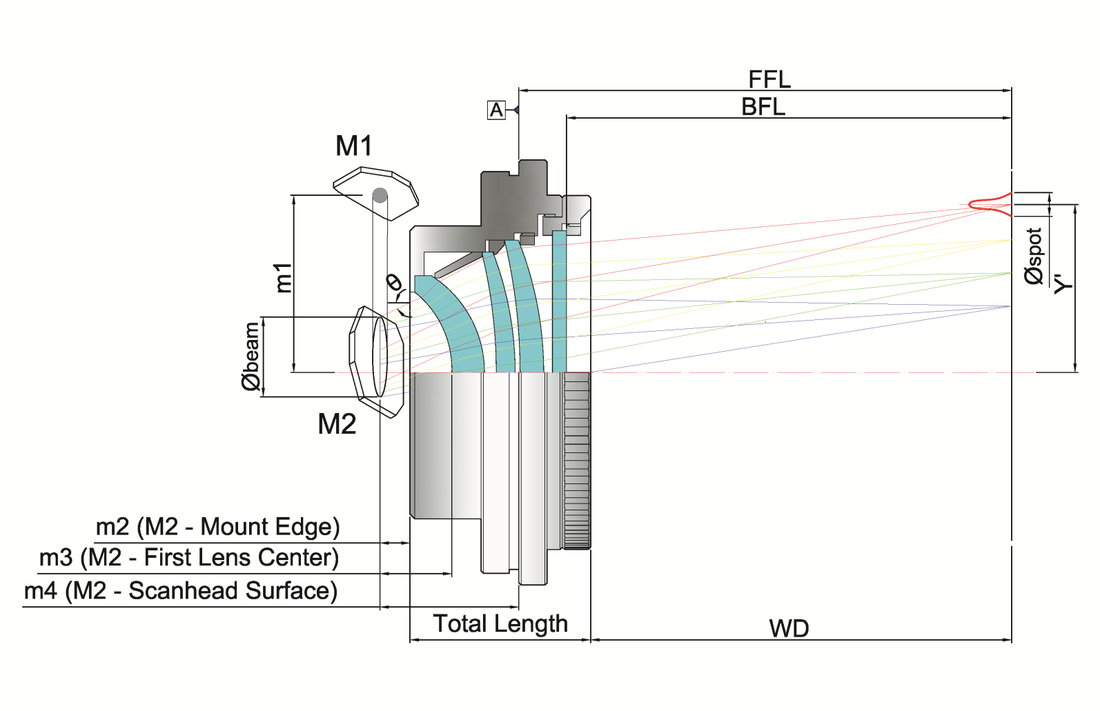

| Part No. | EFL (mm) | Scan Field (mm) | Input Beam Ф (1/e2) (mm) | Max. Scan Angle (±deg) | Thread | WD (mm) | Wavelength |
|---|---|---|---|---|---|---|---|
| SL3-9.4-50-80W | 80.0 | 50x50 | 14.0 | 25.0 | M85x1 | 92.0 | 9.4um |
| SL3-9.4-60-105Z | 105.0 | 60x60 | 14.0 | 23.0 | M55x1 | 130.6 | 9.4um |
| SL3-10.6-50-80Z | 80.0 | 50x50 | 14.0 | 25.3 | M85x1 | 88.0 | 10.6um |
| SL3-10.6-50-100Z | 100.0 | 50x50 | 25.0 | 20.6 | M85x1 | 118.6 | 10.6um |
