CO₂ Laser Optics/Parts
CO₂ Laser High Power Focusing Lens
ZnSe is the typical material for high power CO laser optics for its low absorption coefficient in infrared wavelengths and its visible transmission. High transmission and ultra low absorption coating is added to further reduce surface reflection and absorption of laser power. It is widely used for CO laser cutting, welding and laser heat treatment. LZ series ZnSe Plano-Convex lenses have a positive focal length, they are used to focus a collimated beam to a small spot size, the curved surface will be faced to the input beam to minimize spherical aberration.
- Diameter Tolerance
- +0/-0.13mm
- Thickness Tolerance
- ±0.25mm
- Focal Length Tolerance
- ±2%
- Edge Thickness Variation (ETV)
- ≤3 arc min.
- Clear Aperture
- >90%
- Surface Flatness
- λ/4 per 1"Dia@632.8nm
- Surface Quality
- 20-10 S-D
- AR Coating
- R<0.15% per surface @10.6μm
Applications
Need a custom spec?
Send us your drawings or requirements and our engineering team will provide a tailored quote.
Product Description
CO₂ Laser High Power Focusing Lens
Eternal Optics manufactures high-performance CO₂ Laser High Power Focusing Lenses designed for demanding 10.6 μm CO₂ laser systems requiring superior focusing accuracy, thermal stability, and long-term optical reliability.
Our High Power CO₂ Laser Focusing Lenses are manufactured from premium ZnSe (Zinc Selenide) infrared optical material, providing excellent transmission, low optical absorption, high laser damage resistance, and stable performance under continuous high-power laser operation.
A CO₂ Laser Focusing Lens is a critical optical component that concentrates the laser beam into a precise focal point, creating high energy density for efficient material processing. Optimized lens design and advanced AR coatings help improve cutting quality, reduce thermal effects, and extend optical lifetime in industrial laser applications.
Product features include:
- Optimized for 10.6 μm CO₂ Laser Wavelength
- High Power Laser Processing Capability
- Premium ZnSe Infrared Optical Material
- High Transmission AR Coating
- Low Optical Absorption
- High Laser Damage Threshold
- Excellent Thermal Stability
- Precision Surface Quality
- Long Service Lifetime
Eternal Optics provides Custom CO₂ Laser High Power Focusing Lenses according to customer requirements, including:
- Lens Diameter
- Focal Length
- Working Distance
- Center Thickness
- Optical Material
- Coating Specification
- Surface Quality
- Mechanical Dimensions
- OEM Laser Head Integration
Our 10.6µm High Power CO₂ Laser Focus Lenses are widely used in:
- CO₂ Laser Cutting Machines
- Industrial Laser Engraving Systems
- Laser Welding Equipment
- High Power Laser Processing Systems
- CNC Laser Machines
- Non-Metal Material Cutting
- Acrylic, Wood, Fabric and Plastic Processing
- OEM CO₂ Laser Equipment
With advanced infrared optical manufacturing capabilities, precision polishing technology, and optical coating expertise, Eternal Optics is a professional China manufacturer and global supplier of CO₂ Laser High Power Focusing Lenses, ZnSe Infrared Laser Lenses, and Custom CO₂ Laser Optical Components for industrial laser manufacturers, system integrators, and OEM customers worldwide.

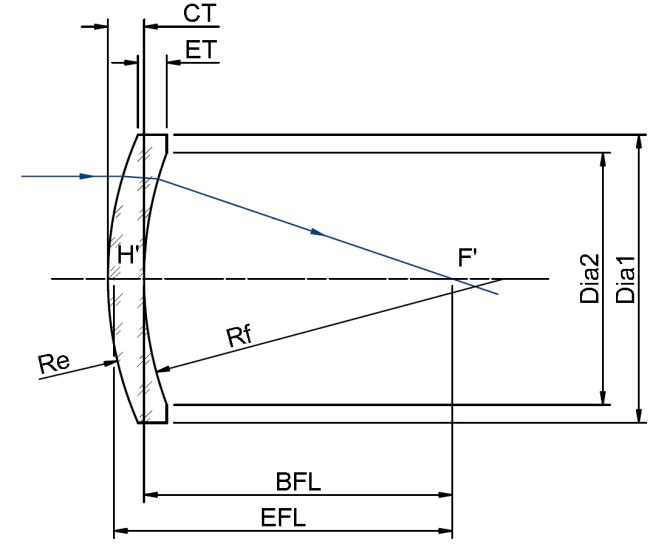

| Part No. | Dia1 (mm) | EFL (mm) | ET (mm) | Type | Dia (mm) |
|---|---|---|---|---|---|
| LZM-1-5-ET2.5 | 25.4 | 127.0 | 2.5 | Meniscus | |
| LZM-1.1-1.5-ET5 | 27.9 | 38.1 | 5.0 | Meniscus | |
| LZM-1.1-2.5-ET3 | 27.9 | 63.5 | 3.0 | Meniscus | |
| LZM-1.1-3.75-ET2 | 27.9 | 95.2 | 2.0 | Meniscus | |
| LZM-1.1-5-ET2.7 | 27.9 | 127.0 | 2.7 | Meniscus | |
| LZM-1.1-7.5-ET6 | 27.9 | 190.5 | 6.0 | Meniscus | |
| LZM-1.5-2.5-ET3 | 38.1 | 63.5 | 3.0 | Meniscus | |
| LZM-1.5-3.75-ET6 | 38.1 | 96.5 | 6.0 | Meniscus | |
| LZM-1.5-5-ET3 | 38.1 | 127.0 | 3.0 | Meniscus | |
| LZM-1.5-7.5-ET3 | 38.1 | 190.5 | 3.0 | Meniscus | |
| LZM-1.5-10-ET9 | 38.1 | 254.0 | 9.0 | Meniscus | |
| LZM-2-3.75-ET9.6 | 50.8 | 96.5 | 9.6 | Meniscus | |
| LZM-2-5-ET8 | 50.8 | 127.0 | 8.0 | Meniscus | |
| LZM-2-7.5-ET3.5 | 50.8 | 190.5 | 3.5 | Meniscus | |
| LZM-2-10-ET9.6 | 50.8 | 254.0 | 9.6 | Meniscus | |
| LZM-2-12.5-ET9.65 | 50.8 | 317.5 | 9.7 | Meniscus | |
| LZM-2.5-7.5-ET11 | 63.5 | 190.5 | 11.0 | Meniscus | |
| LZ-1-1.5-ET3 | 38.1 | 3.0 | PO/CX | 25.4 | |
| LZ-1-2-ET3 | 50.8 | 3.0 | PO/CX | 25.4 | |
| LZ-1-2.5-ET3 | 63.5 | 3.0 | PO/CX | 25.4 | |
| LZ-1-3-ET3 | 76.2 | 3.0 | PO/CX | 25.4 | |
| LZ-1-4-ET3 | 101.6 | 3.0 | PO/CX | 25.4 | |
| LZ-1-5-ET3 | 127.0 | 3.0 | PO/CX | 25.4 | |
| LZ-1-10-ET3 | 254.0 | 3.0 | PO/CX | 25.4 | |
| LZ-1-12.5-ET4.8 | 317.5 | 4.8 | PO/CX | 25.4 | |
| LZ-1-15-ET4.8 | 381.0 | 4.8 | PO/CX | 25.4 | |
| LZ-1.1-5-ET3 | 127.0 | 3.0 | PO/CX | 27.9 | |
| LZ-1.1-7.5-ET4 | 190.5 | 4.0 | PO/CX | 27.9 | |
| LZ-1.5-2.5-ET7.4 | 63.5 | 7.4 | PO/CX | 38.1 | |
| LZ-1.5-3.5-ET3 | 88.9 | 3.0 | PO/CX | 38.1 | |
| LZ-1.5-3.75-ET3 | 96.5 | 3.0 | PO/CX | 38.1 | |
| LZ-1.5-5-ET4 | 127.0 | 4.0 | PO/CX | 38.1 | |
| LZ-1.5-7.5-ET4 | 190.5 | 4.0 | PO/CX | 38.1 | |
| LZ-1.5-15-ET8 | 381.0 | 8.0 | PO/CX | 38.1 | |
| LZ-2-5-ET8 | 127.0 | 8.0 | PO/CX | 50.8 | |
| LZ-2-7.5-ET8 | 190.5 | 8.0 | PO/CX | 50.8 | |
| LZ-2-8.75-ET7.8 | 223.5 | 7.8 | PO/CX | 50.8 | |
| LZ-2-8.75-ET8.5 | 223.5 | 8.5 | PO/CX | 50.8 | |
| LZ-2-10-ET7.9 | 254.0 | 7.9 | PO/CX | 50.8 | |
| LZ-2.5-8.75-ET9.7 | 223.5 | 9.7 | PO/CX | 63.5 | |
| LZ-2.5-10-ET9.9 | 254.0 | 9.9 | PO/CX | 63.5 |
